Ανάρτηση για Suzuki Jimny +8cm

This set made entirely in Italy raises 8cm compared to the original trim and mounts without any modification on all Suzuki Jimny of any year and engine, includes all the accessories useful for the optimal functioning of the suspension even with heavy use

Ideal for those who want more comfort in daily use and greater mobility in off-road use, without sacrificing stability and safety on the highway.

This lift kit allows a maximum excursion of about 65/70 cm.

The set-up is available with specific calibration for gasoline or diesel engine, if a winch or heavy-duty bumper with a weight of more than 20kg is installed, springs with a suitable load will be provided, in the drop down menus at the top you can the customized configuration of the structure, specifying the year of off-road construction.

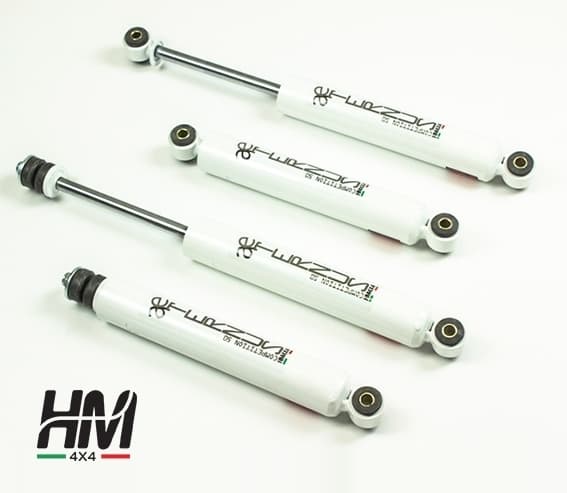

The shock absorbers included in the kit have a body of 50mm and stem of 16mm, are of the bitubo type with internal return stop on rubber resistant up to 5000kg, can be reviewed and recalibrated according to your needs.

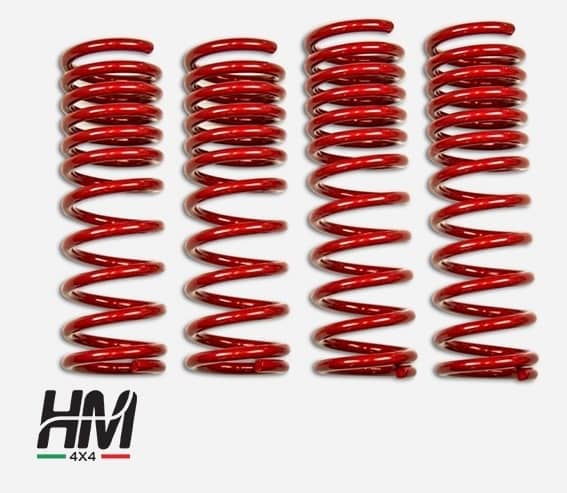

The springs included in the kit are of progressive type with variable pitch.
A spring with variable pitch during compression progressively hardens thus obtaining an extremely soft, comfortable and able to copy the ground but very stable on the road.

For this kit it is possible to choose the type of spring load:

• soft for use in off-road mode without rear load, you will have maximum off-road performance, excellent road stability but if you load the rear suspension drops significantly, incorrect use prematurely snerva;
• standard with calibration very similar to the original trim, excellent off-road performance and very stable on the road, ideal for the multi-purpose use of the vehicle.

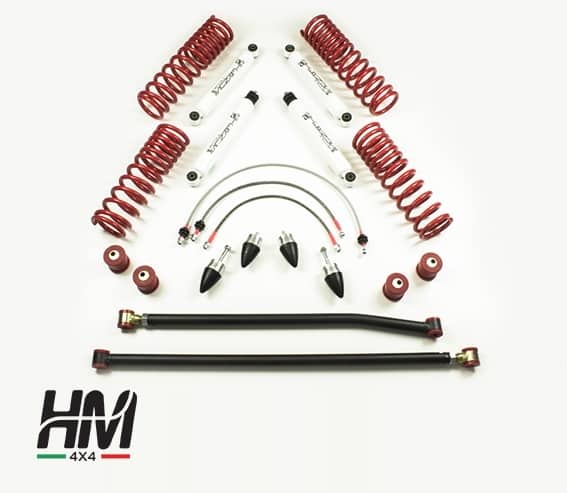

The lift kit is composed of the following accessories:

• 4 molle variable pitch;
• 4 shock Æternus;

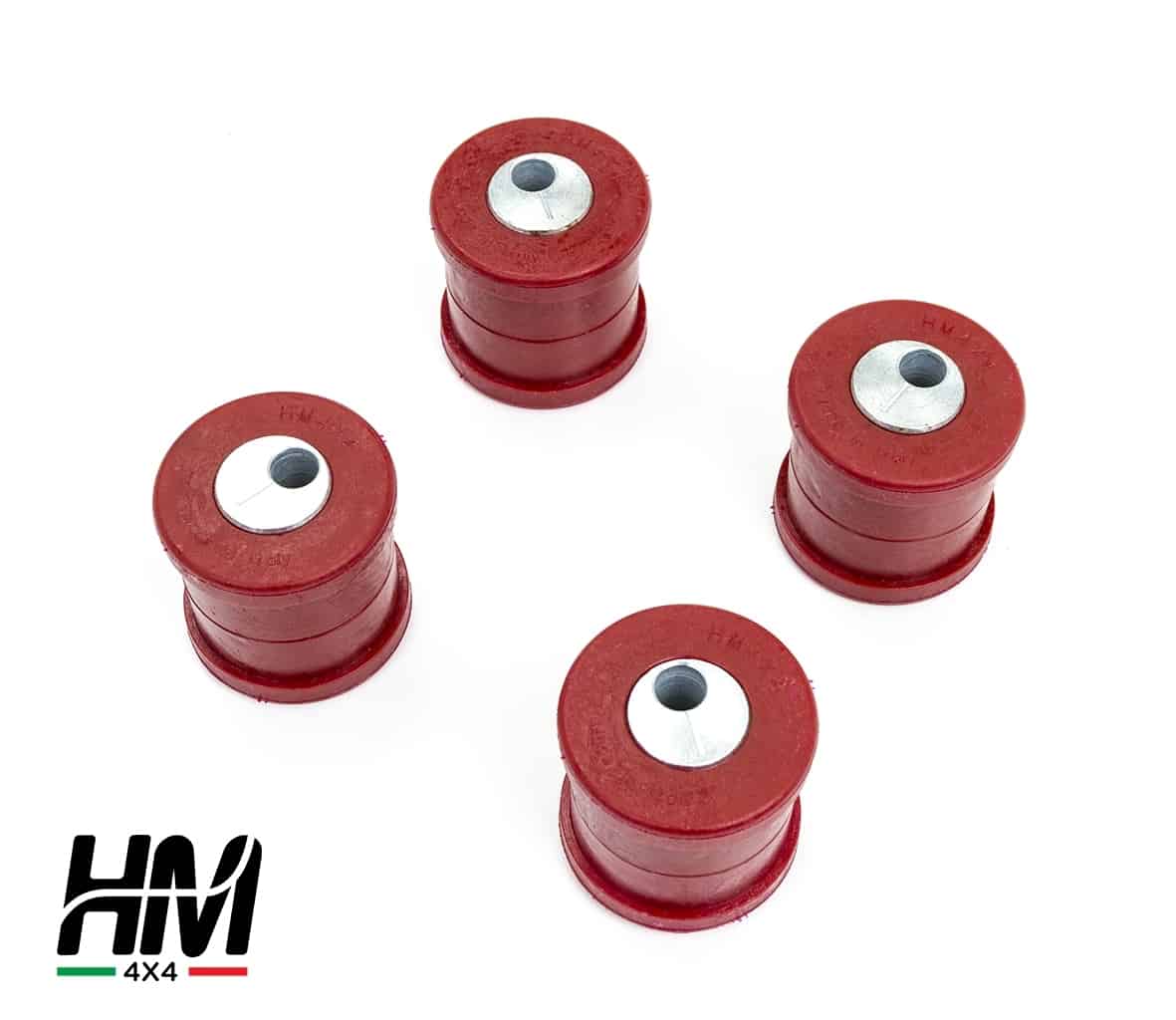

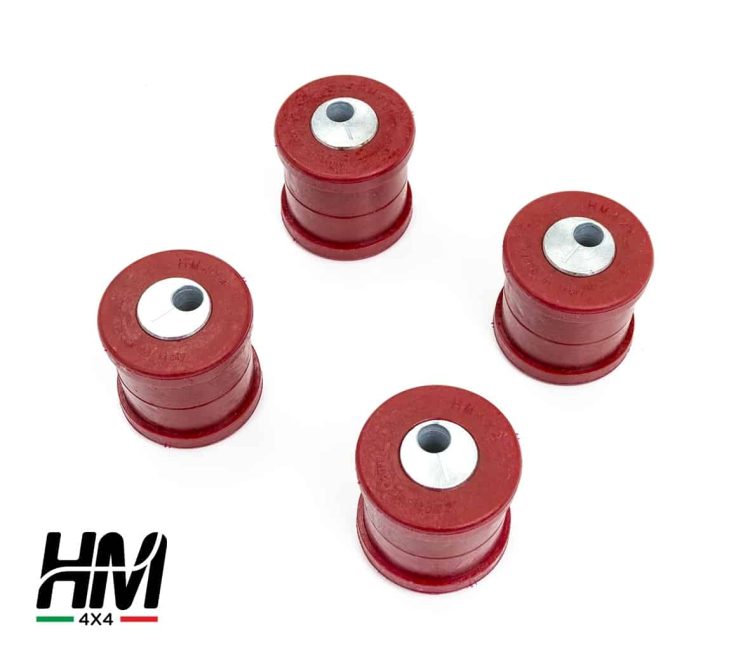

• kit caster correction in high mobility cellular polyurethane to correct the caster angle of the front axle;

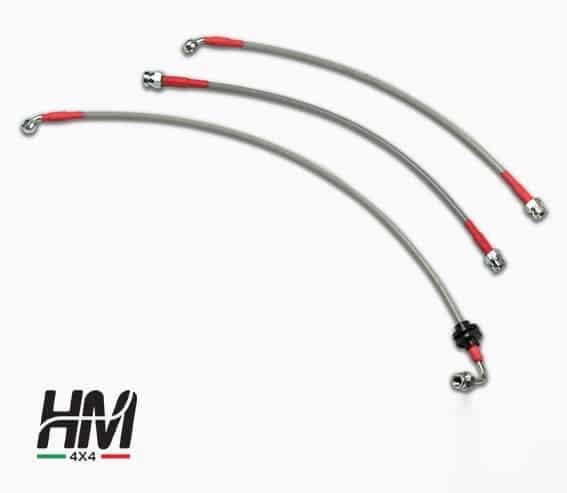

• kit aeronautical braided brake hoses stretched;

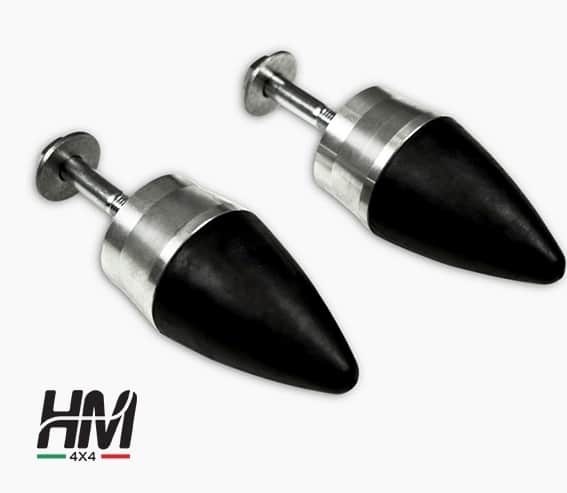

• elongated bump stop complete with a new rubber pad;

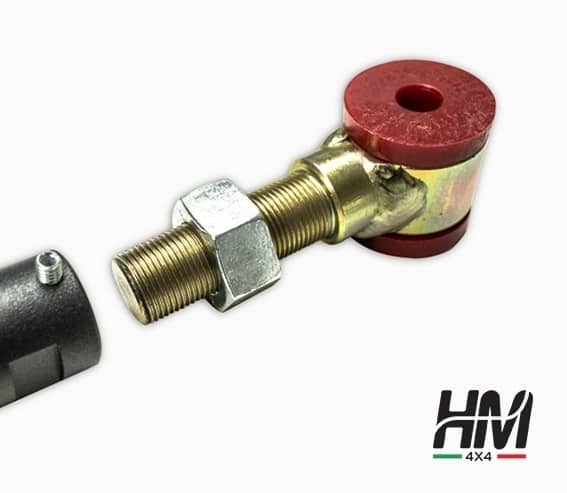

• pair of reinforced and adjustable Panhard rods to adjust the centering of the bridges and improve driveability and the established road.
