Ανάρτηση Pedders 1.75 Inch Suspension Lift Kit. Ford Ranger, PX MkIII

Pedders 1.75 Inch Suspension Lift Kit. Ford Ranger, PX3

Improved looks and ground clearance.
Are you looking to raise your Ford Ranger?
Then Pedders Suspension has the solution for you.

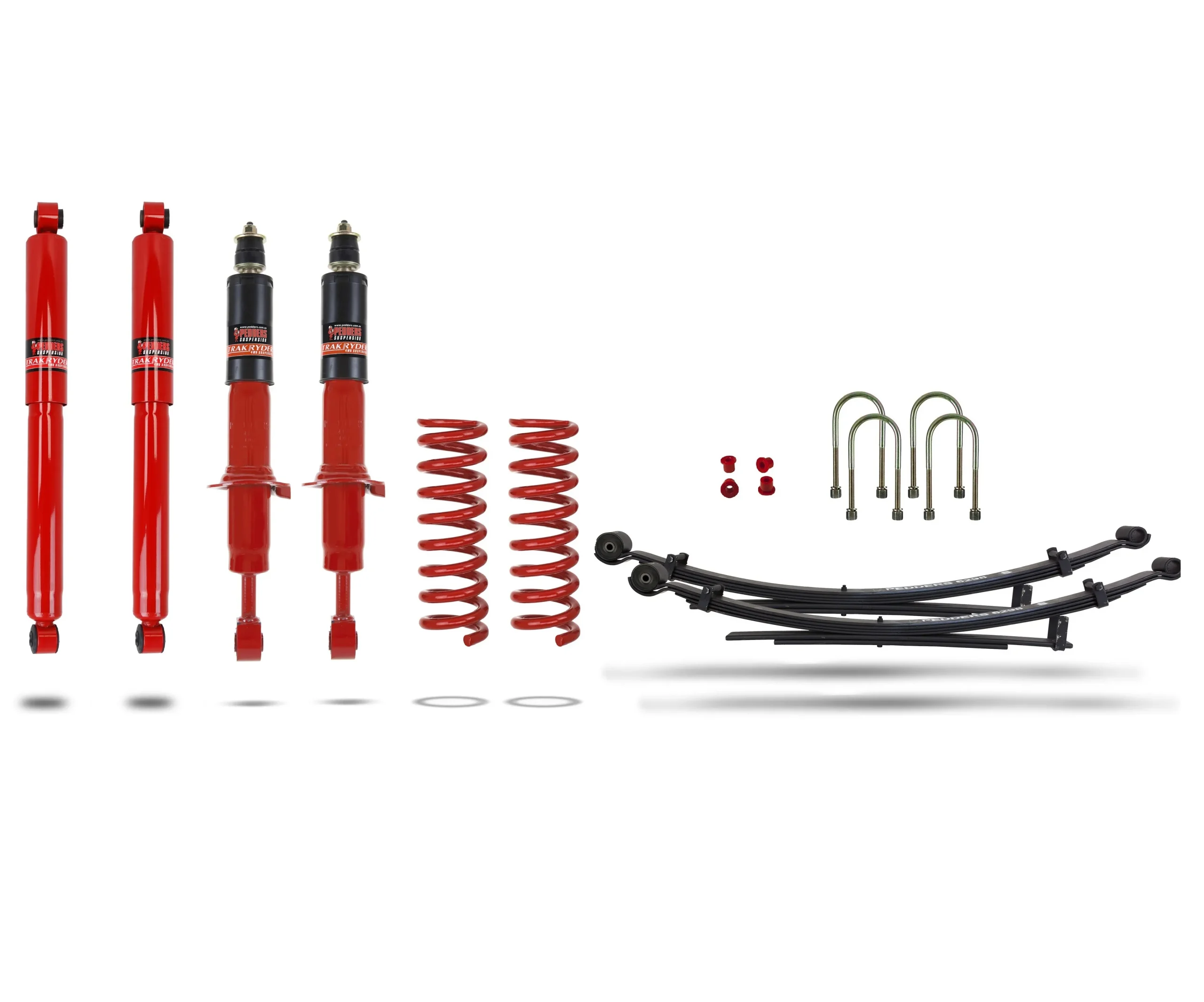

This kit features our excellent Pedders TrakRyder shocks, front coil springs, and new rear leaf springs as well as the necessary bushes and U bolts to install them.
This kit is our Entry level Lift kit and is designed primarily to raise the vehicle and improve ground clearance. If you regularly carry heavy loads or tow a trailer, then consider one of our heavy-duty kit options
This kit will raise the vehicle by approx. 40mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tires. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.
For those using the vehicle in a continuously laden state, please consider one of our heavy-duty options.
These components replace the original items. No other modifications to the vehicle are necessary. After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.
Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

• 1.75 Inch Lift Kit
• Increased Off-Road Ground Clearance
• Sintered Iron Piston Shocks with a Large 35mm Bore
• Premium Grade Steel Coils
• All backed by our 2 year / 40,000km warranty

Vehicle Height Information

Front: 840mm with 17-inch wheels
Rear: Approx. 40mm higher than standard.
Notes: Heights should be measured as shown in the secondary picture.

Tech Info

Weight [KG]: 84.39999999999999

Applications
