€450.00
The BST 10000 Lbs hoist from Husarwinch has been designed to achieve better results than others in this category, while making it easier for buyers to buy basic purchases of great value. The Husar winch model BST 10000 Lbs is...
Περιγραφή
The BST 10000 Lbs hoist from Husarwinch has been designed to achieve better results than others in this category, while making it easier for buyers to buy basic purchases of great value. The Husar winch model BST 10000 Lbs is ideal for medium and large vehicles.
| BST 10000lbs | Technical specifications | ||
| Pull capacity(single line) | 10000lbs / 4536 kgs | ||
| Motor 12V | 5.5 hp / 4,0 kw | ||
| Controls | Wired / wireless remote control | ||
| Gear | 3-stage planetary | ||
| Gear ratio | 218:1 | ||
| Brake | Automatic | ||
| Rope | 28m x Ø 8,5 mm | ||
| Fairlead | 4-ways rollers fairlead | ||
| Net weight | 35 kg | ||

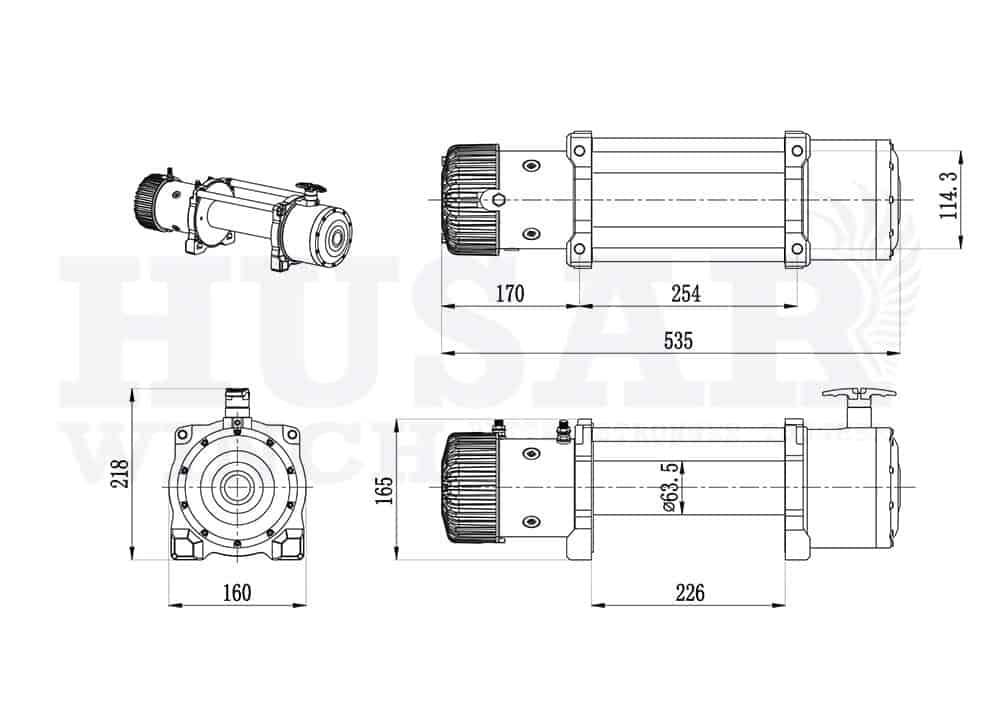

| Mounting bolt pattern | 254mm x 114,3mm | ||
| Dimensions | (L x W x H) 546mm × 160mm × 218mm | ||
| Line speed and motor current (first layer) | ||||||
| Line pull | Lbs | 0 | 2000 | 6000 | 8000 | 10000 |
| Kgs | 0 | 907 | 2722 | 3629 | 4536 | |
| Line speed | M/min | 6,8 | 4,88 | 2,98 | 2,44 | 1,8 |
| Motor current | Amps | 80 | 130 | 230 | 290 | 350 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| Rated line pull per layer | Lbs | 10000 | 8800 | 7800 | 6600 | |
| Kgs | 4535 | 3990 | 3538 | 2994 | ||
| Cable capacity per layer | M | 6 | 13,2 | 22 | 28 | |
