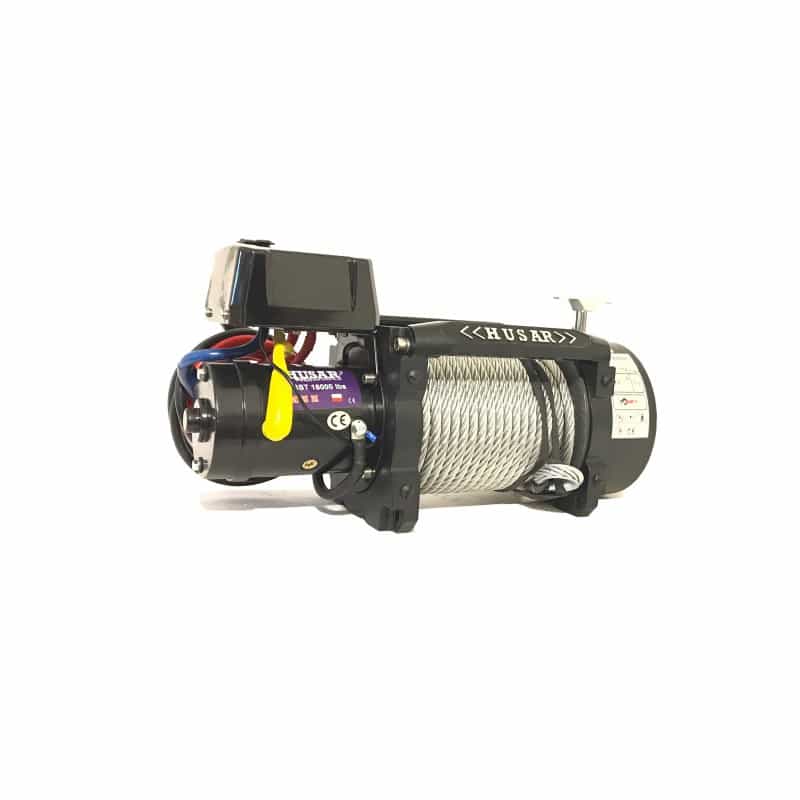

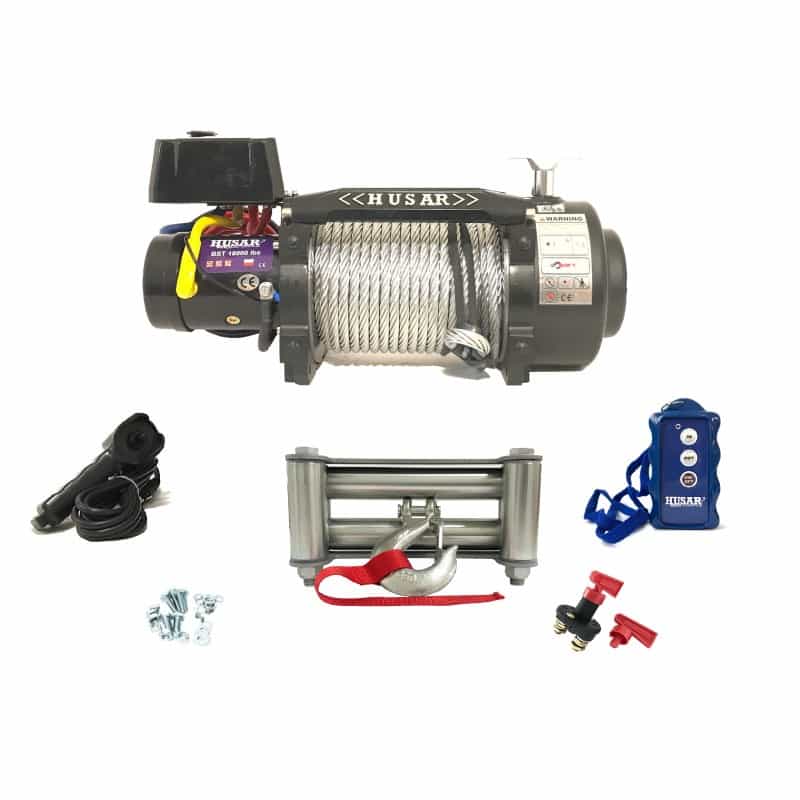

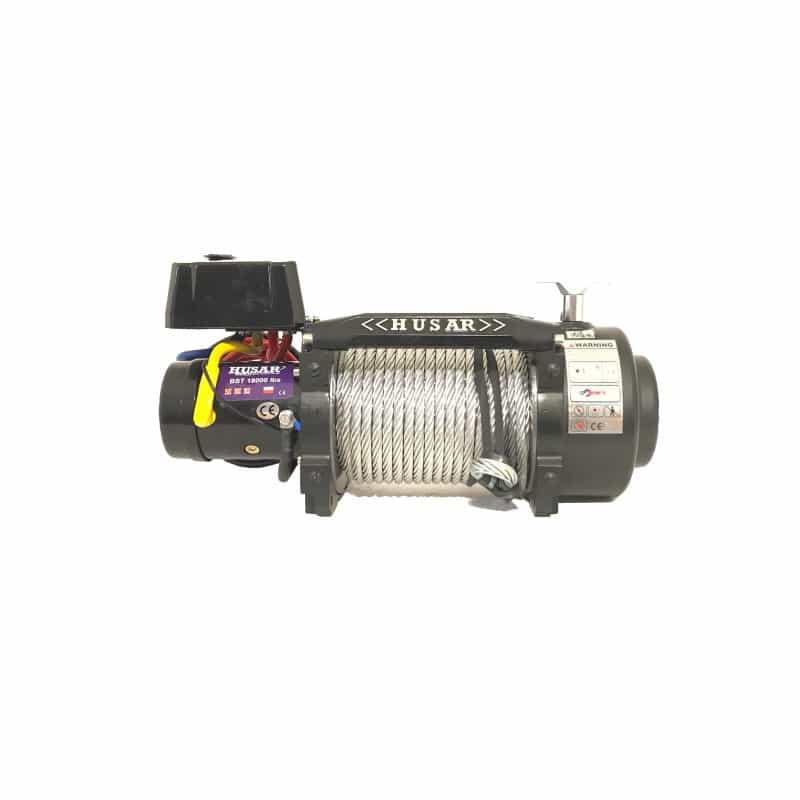

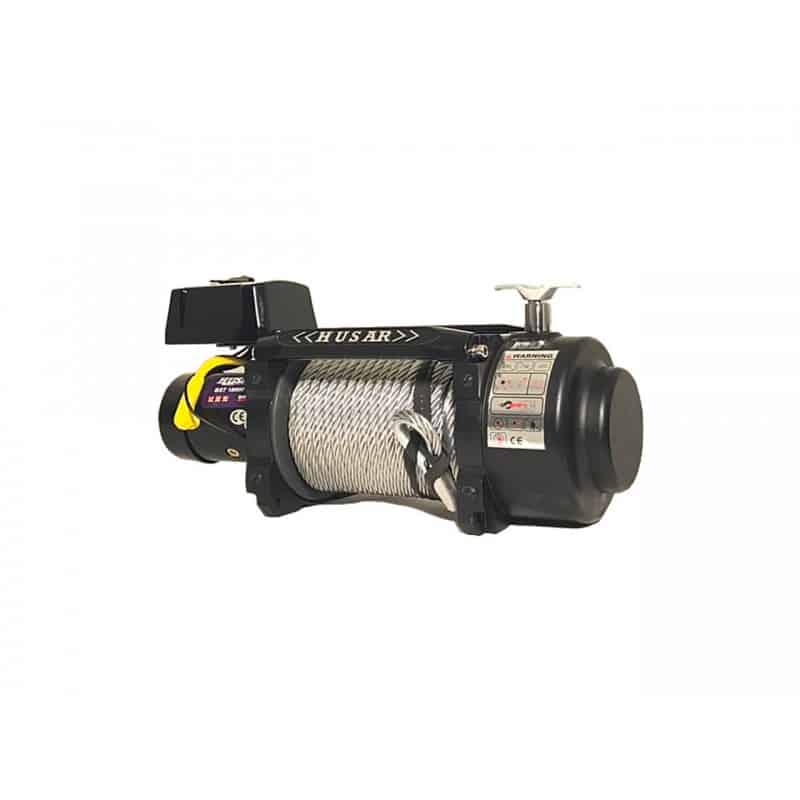

BST S 18000lbs Technical specifications Pull capacity(single line) 18000lbs / 8165 kg Motor 12V / 24V 4,2 KM / 5,5 kw 5,5km / 7,5 hp Controls Wired / wireless remote control Gear 3-stage planetary Gear ratio 450:1 Brake Automatic Rope...
Περιγραφή
| BST S 18000lbs | Technical specifications | ||
| Pull capacity(single line) | 18000lbs / 8165 kg | ||
| Motor 12V / 24V | 4,2 KM / 5,5 kw 5,5km / 7,5 hp | ||
| Controls | Wired / wireless remote control | ||
| Gear | 3-stage planetary | ||
| Gear ratio | 450:1 | ||
| Brake | Automatic | ||
| Rope | 25,5m x Ø 11 mm | ||
| Fairlead | 4-ways rollers fairlead | ||
| Net weight | 60 kg | ||
| Mounting bolt pattern | 254mm x 114,3mm 4-M12 | ||

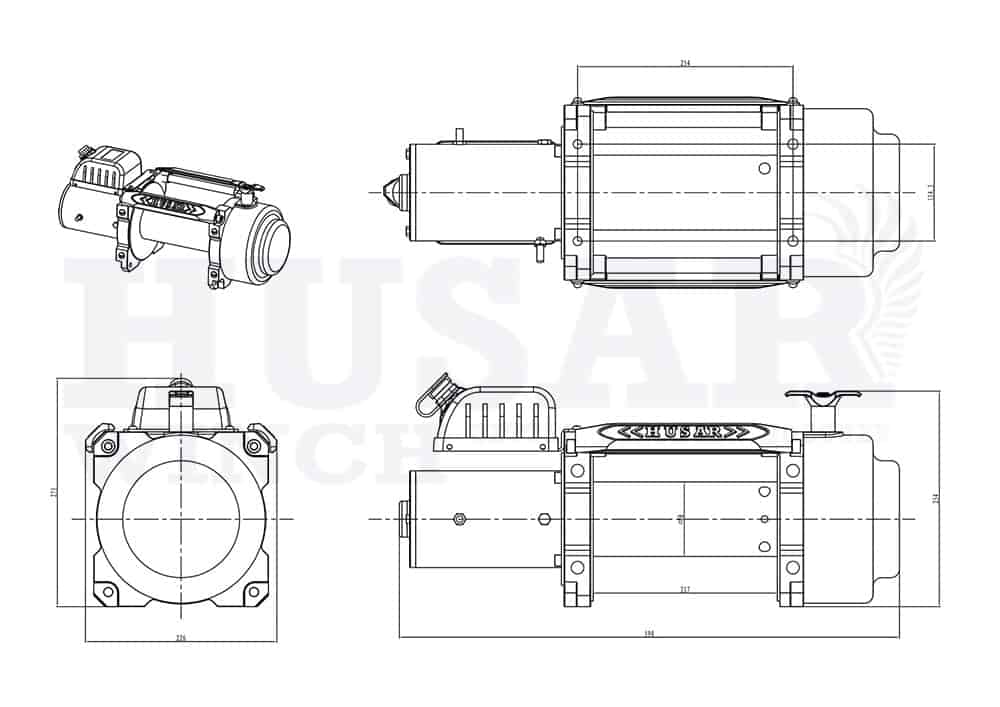

| Dimensions | (L x W x H) 593mm × 226mm × 294mm | ||
| Line speed and motor current (first layer) | ||||||
| Line pull | Lbs | 0 | 1000 | 12000 | 15000 | 18000 |
| Kgs | 0 | 4536 | 5443 | 6804 | 8165 | |
| Line speed | M/min 12V | 4,6 | 1,7 | 1,9 | 1,37 | 1,2 |
| M/min 24V | 4,9 | 2,2 | 2,1 | 1,8 | 1,7 | |
| Motor current | Amps 12V | 90 | 285 | 260 | 340 | 410 |
| Amps 24V | 48 | 140 | 145 | 191 | 235 | |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| Rated line pull per layer | Lbs | 18000 | 15000 | 12000 | 10100 | |
| Kgs | 8165 | 6804 | 5443 | 4581 | ||
| Cable capacity per layer | M | 6 | 13 | 21 | 28,5 | |
