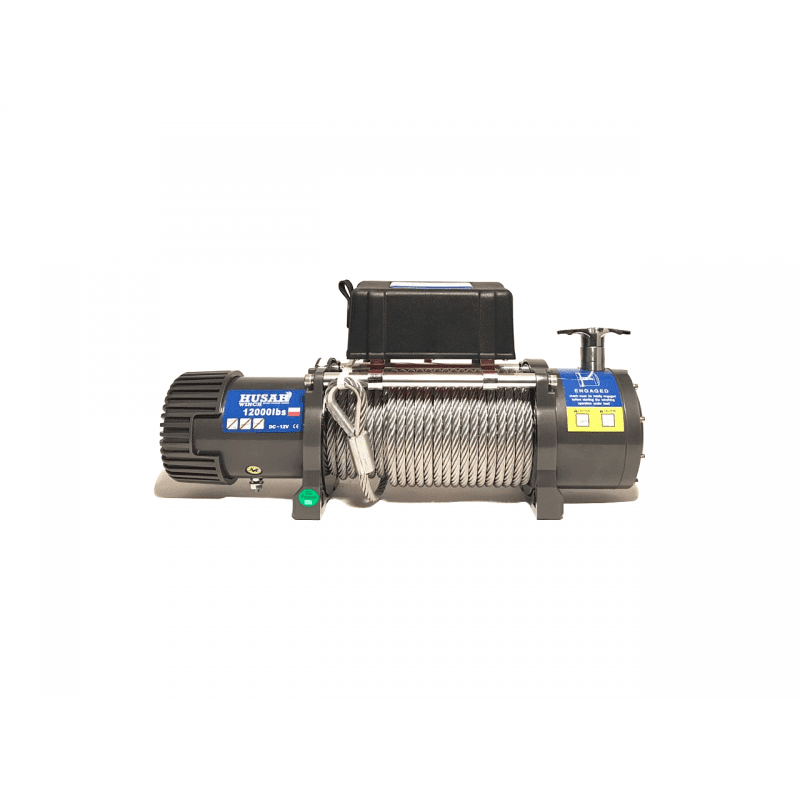

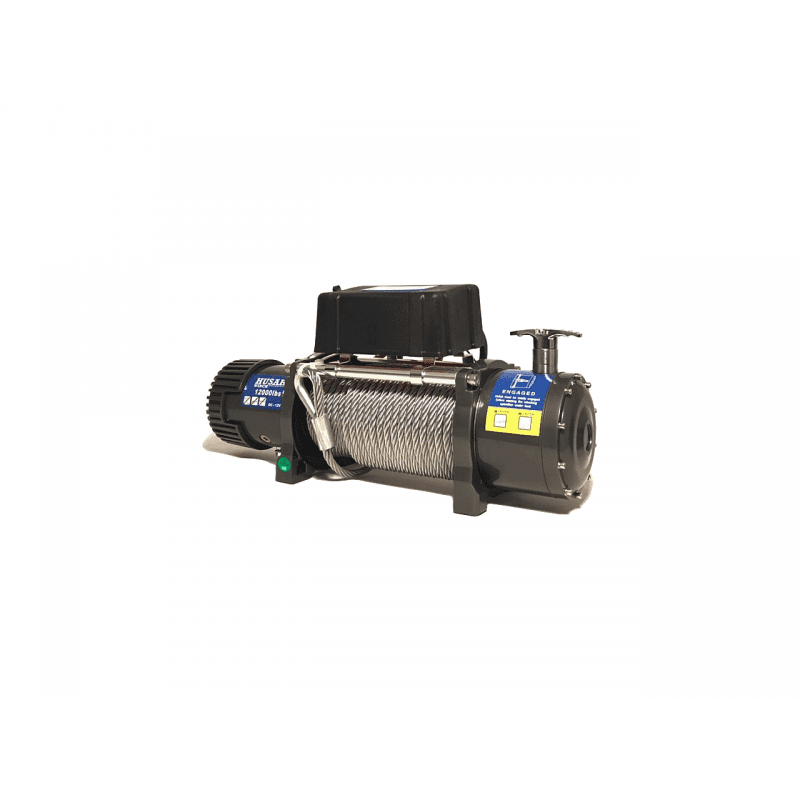

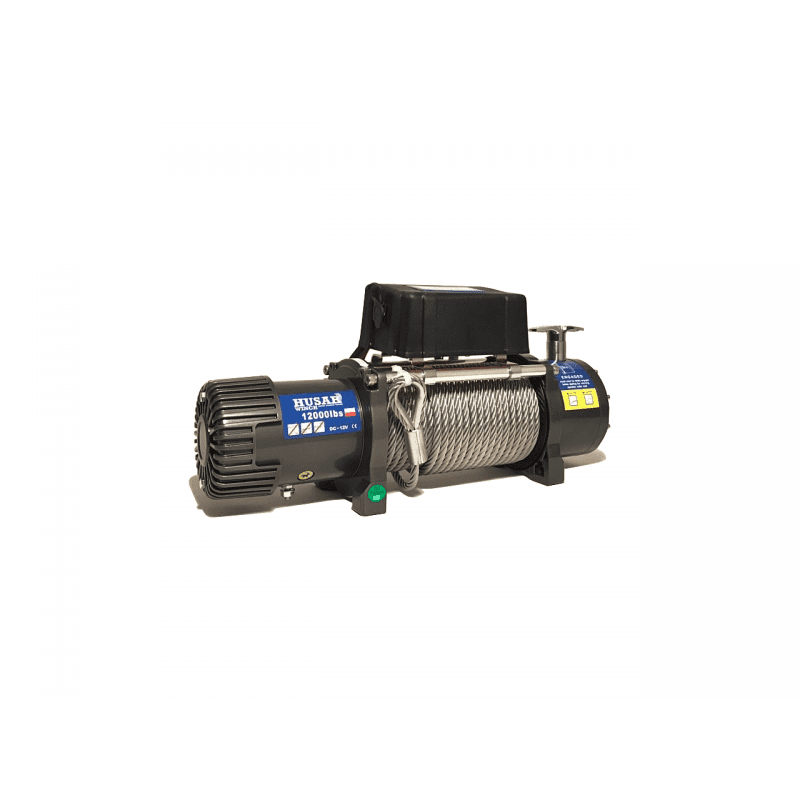

BST 12000lbs | Technical specifications | ||
Pull capacity(single line) | 12000lbs / 5443 kgs | ||
Motor 12V / 24V | 6.0 KM / 4,4 Kw 8,1KM/6,0kW | ||

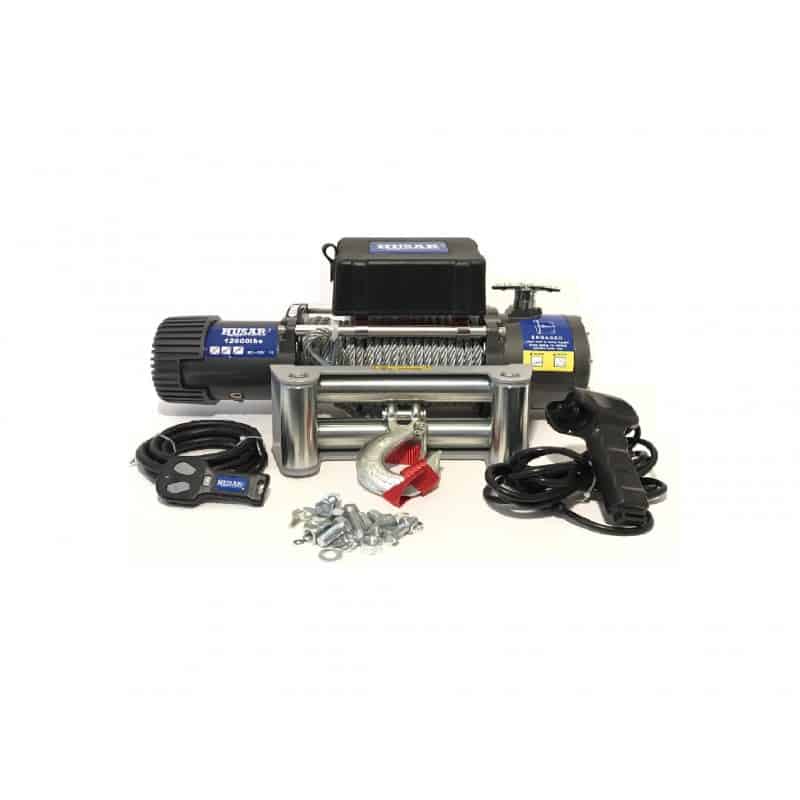

Controls | Wired / wireless remote control | ||
Gear | 3-stage planetary | ||
Gear ratio | 265:1 | ||
Brake | Automatic | ||
Rope | 25m x Ø 9,5 mm | ||
Fairlead | 4-ways rollers fairlead | ||
Net weight | 38 kg | ||

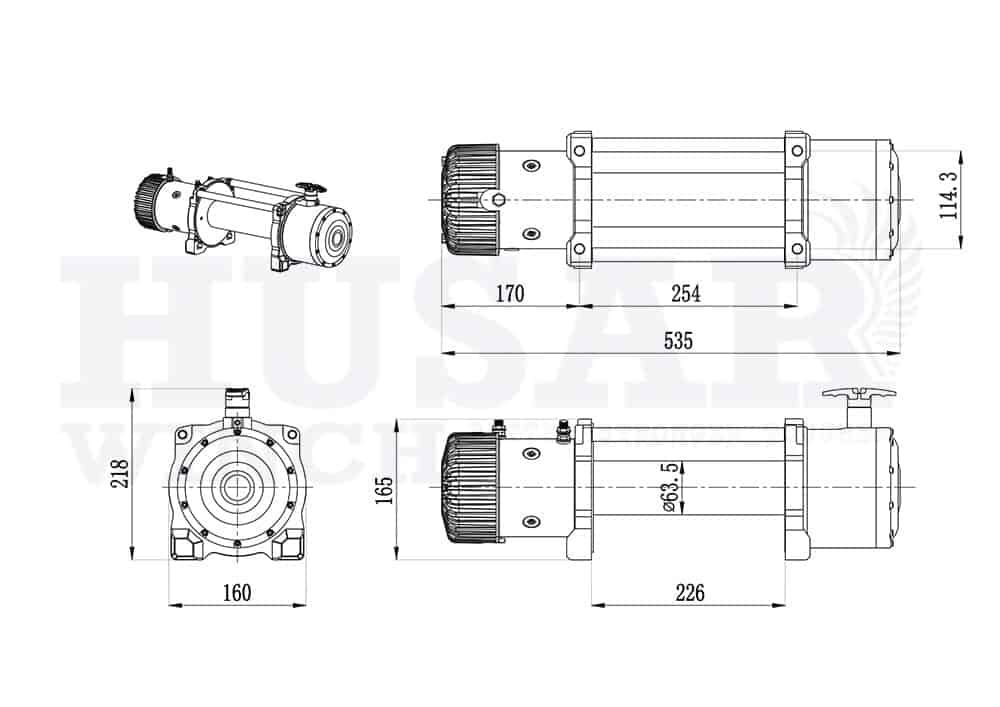

Mounting bolt pattern | 254mm x 114,3mm | ||
Dimensions | (L x W x H) 546mm × 160mm × 218mm |
Line speed and motor current (first layer) | ||||||
Line pull | Lbs | 0 | 4000 | 6000 | 10000 | 12000 |
Kgs | 0 | 1814 | 2722 | 4536 | 5443 | |
Line speed | M/min 12V | 6,8 | 3,8 | 3 | 2,1 | 1,7 |
M/min 24V | 10 | 7 | 5,5 | 3,2 | 2,7 | |
Motor current | Amps 12V | 80 | 170 | 210 | 310 | 360 |
Amps 24V | 45 | 70 | 95 | 185 | 240 |
Line pull and cable capacity | ||||||
Layer of cable | 1 | 2 | 3 | 4 | ||
Rated line pull per layer | Lbs | 12000 | 9900 | 8300 | 7000 | |
Kgs | 5443 | 4490 | 3765 | 3175 | ||
Cable capacity per layer | M | 6 | 13 | 22 | 25 |
