Εργάτης Warn EVO VR12s

Information Battery:

• Type: Non rechargeable battery
• Chemical System: Lithium

The “VR EVO” winch from WARN replaces the “TABOR” series, which has been popular for years, and can boast many innovations compared to the previous model.

Features:

• IP68 tested (only Winch)
• Faster rope speed under load with lower amperage consumption *
• Higher pulling capacity per rope layer *
• 2-in-1 wired & wireless remote control
• Centrally routed cable exit in the middle of the contactor
• Reinforced connection plate for higher stability
• Reliable contactor control
• Modern & functional design

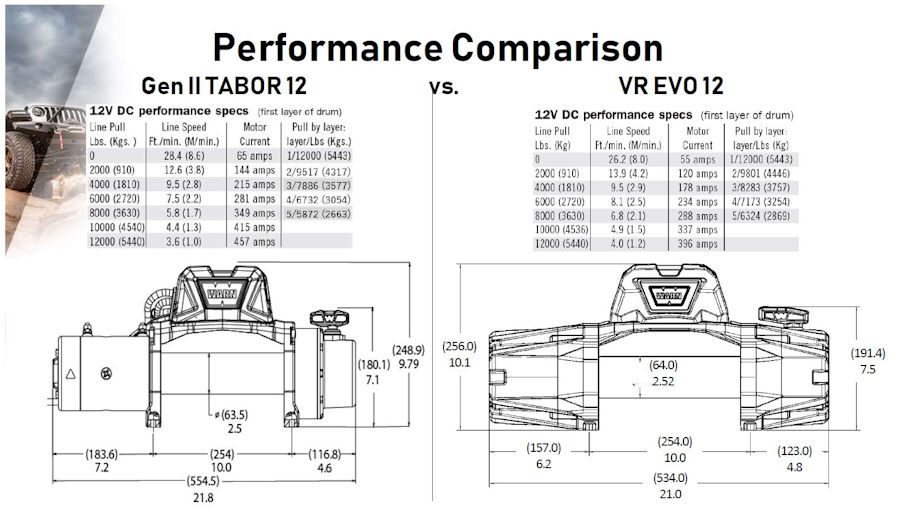

  * Compared to Tabor Series

Winch

• Model: WARN VR EVO 12s
• Voltage: 12 Volt
• Tractive force: 5443 kg
• Control: Kontaktor
• Radio remote control: ja
• Cable remote control: ja, 3.7 m
• Gearbox: 3-stufiges Planetengetr.
• Gear ratio: –
• Brake: Feder auto.
• Drum dimensions: 6,4 x 22 cm
• Weight: 26 kg
• Rope material: Kunststoff
• Rope lenght: 27, m x 9,5 mm
• Battery cable: 1,83 m
• Rope freewheel: manuell
• Min. cold start current battery: Alu CCA
• Towing hook: –
• Mounting screws: ja
• Dimensions: ja x 534 x 160 mm
• Hole pattern: 256 x 254 mm

Video

Aρχεία

• Installation instructions
• Spare part
• Data sheet
