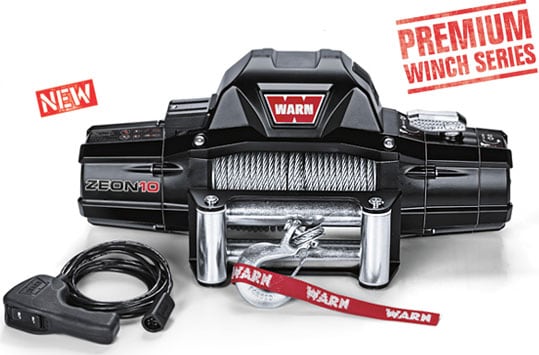

Νέος Εργάτης από την Warn , μην σας ξεγελάει το απίστευτο desigh που έχει , είναι ανθεκτικός , είναι γερός , είναι αντοχής , είναι φτιαγμένος για τα δύσκολα ! 10,000 lb. (4536 kg) single-line pulling capacity. Includes 80 of...
Περιγραφή
Νέος Εργάτης από την Warn , μην σας ξεγελάει το απίστευτο desigh που έχει , είναι ανθεκτικός , είναι γερός , είναι αντοχής , είναι φτιαγμένος για τα δύσκολα !
- 10,000 lb. (4536 kg) single-line pulling capacity.
- Includes 80 of 3/8″ galvanized steel wire rope
- Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks. (Relocation kit required and sold separately*)
- New-design planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power
- Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
- Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
- Backed by the WARN Limited Lifetime Warranty
*Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)
ZEON 10 SPECS/PART NUMBER
Part number: 89650 (CE, for International sales only)
Rated line pull: 10,000 lbs. (4536 kg) single-line
Motor: 12V DC, series wound
Electrical controls: Contactor
Remote Control: Remote switch, 12 (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 216:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone
Drum diameter/Length: 3.15″/9.0″ (80mm/229mm)
Weight (kit shipping): 98 lbs. (44 kg)
Rope: 3/8″ x 80 (9.52mm x 24.38m) steel
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72″ (1.83m)
Finish: Satin-black powder coat
Warranty: Limited lifetime
| 12V DC PERFORMANCE SPECS | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 33 (10.27) | 62 amps | 1/10000 (4536) |
| 2000 (910) | 14.9 (4.5) | 144 amps | 2/8245 (3740) |
| 4000 (1810) | 11.2 (3.4) | 215 amps | 3/7014 (3181) |
| 6000 (2720) | 8.5 (2.6) | 380 amps | 4/6103 (2768) |
| 8000 (3630) | 6.5 (2.0) | 353 amps | 5/5402 (2450) |
| 10000 (4536) | 4.8 (1.5) | 409 amps | |
Above performance specs are based on first layer of drum
Winch Dimensions:
Integrated configuration: 24.25″ L x 7.15″ D x 10.52″ H
(615.9mm L x 181.6mm D x 267.1mm H)
Low-profile configuration: 24.25″ L x 7.15″ D x 7.84″ H
(615.9mm L x 181.6mm D x 199.02mm H)Mounting Bolt Pattern: 10.0″ x 4.5″ (254mm x 114.3mm)
