€1,350.00

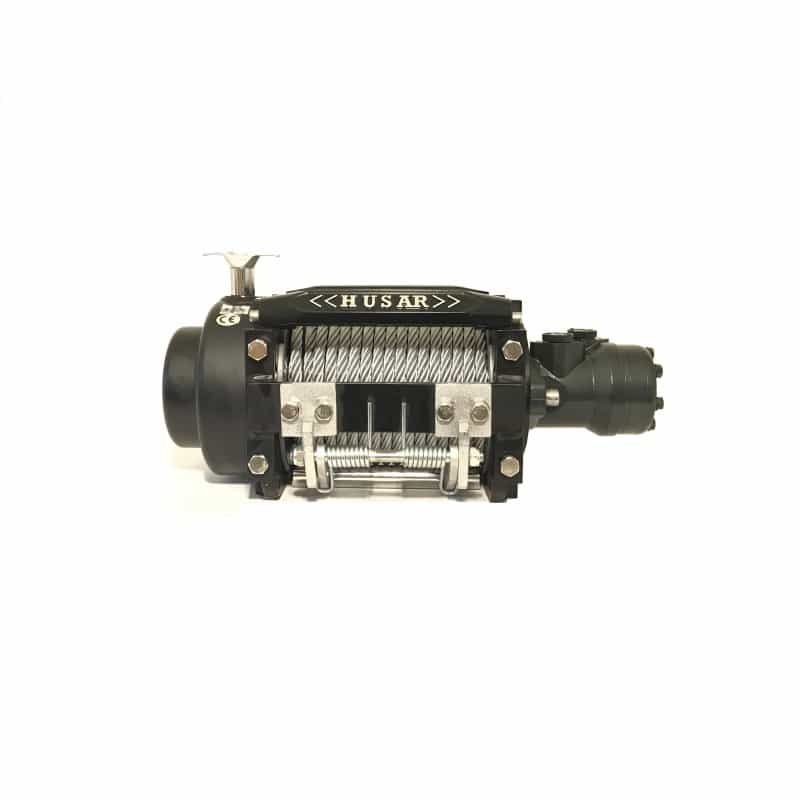

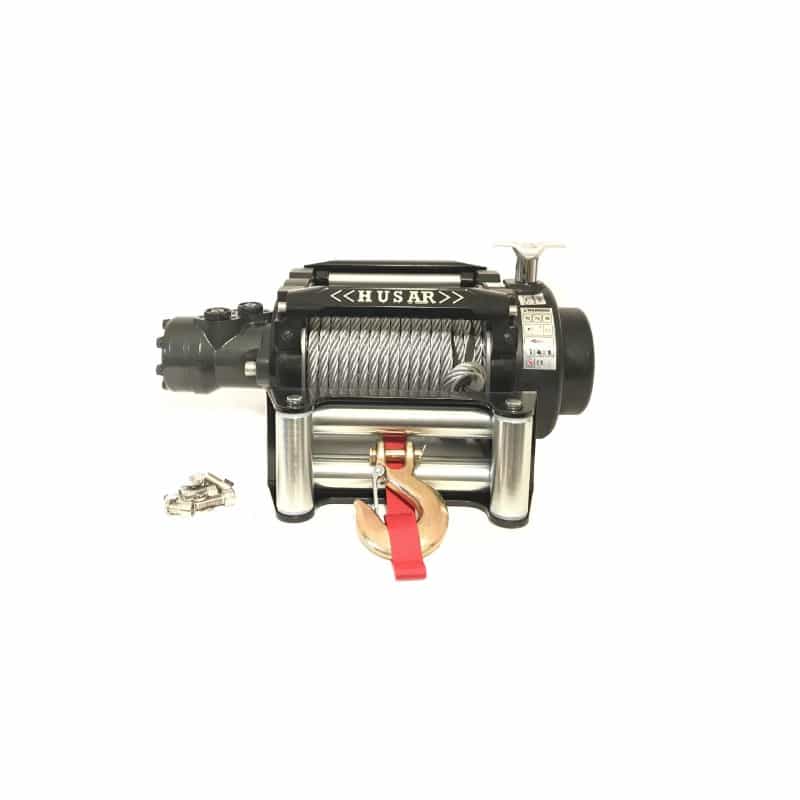

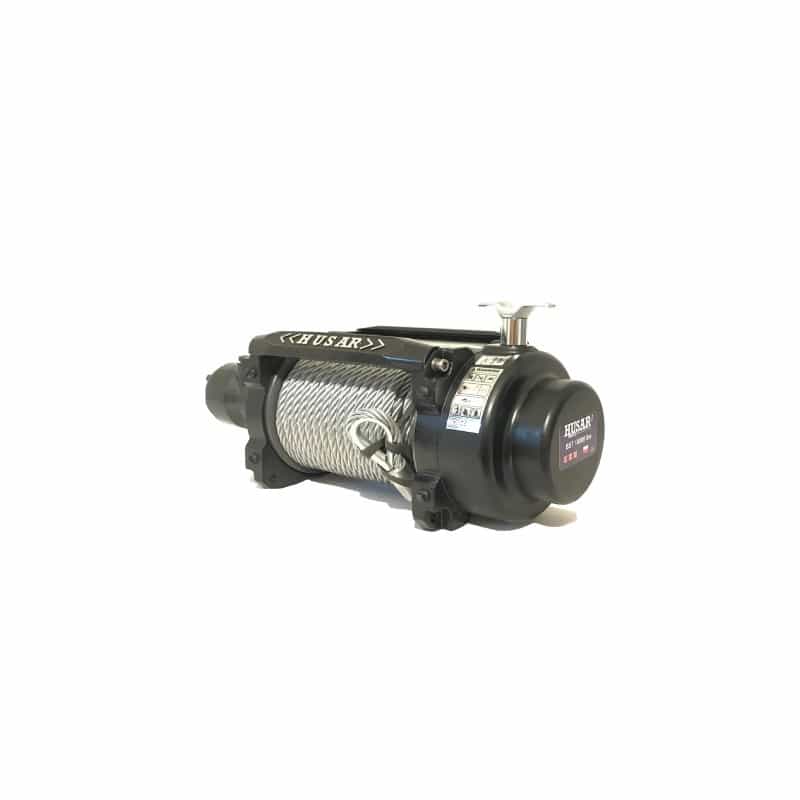

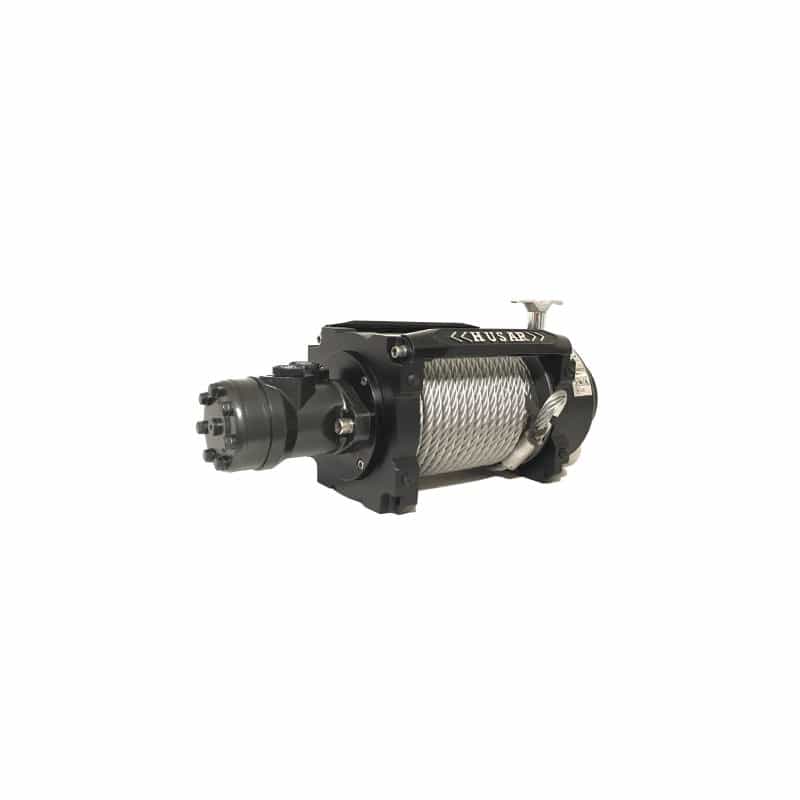

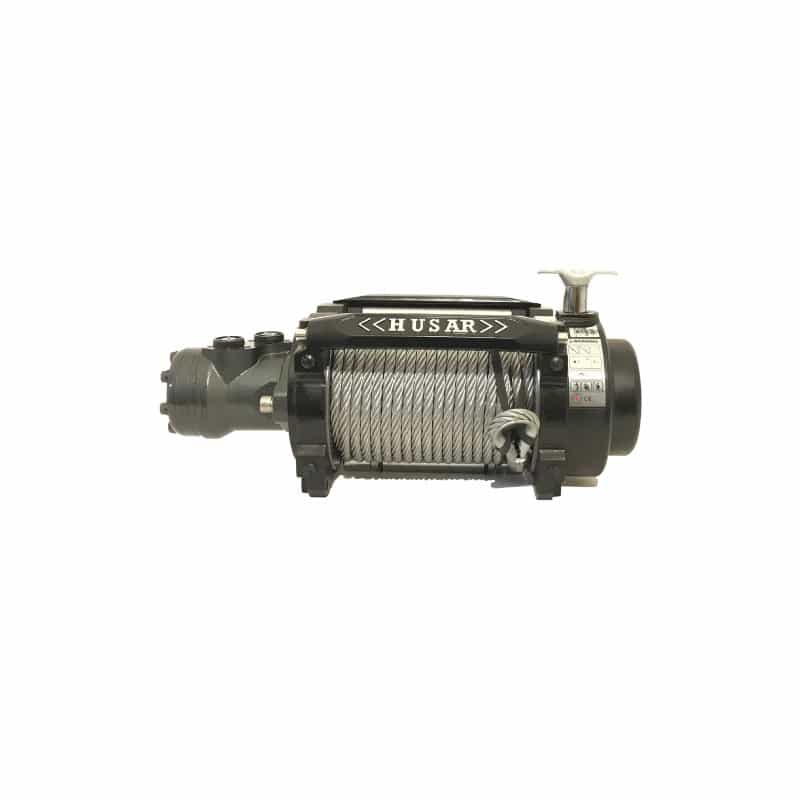

BST H 18000lbs Technical specifications Pulling rate 8165 kg Motor displacement 80ml/r Oil flow 5～60L/min Pressure 13Mpa Gear 2 -stage planetary Gear ratio 34:1 Rope 26,5m x Ø 12 mm Fairlead 4-ways rollers fairlead Net weight 69 kg Mounting bolt...
Περιγραφή
| BST H 18000lbs | Technical specifications | ||
| Pulling rate | 8165 kg | ||
| Motor displacement | 80ml/r | ||
| Oil flow | 5～60L/min | ||
| Pressure | 13Mpa | ||
| Gear | 2 -stage planetary | ||
| Gear ratio | 34:1 | ||
| Rope | 26,5m x Ø 12 mm | ||
| Fairlead | 4-ways rollers fairlead | ||
| Net weight | 69 kg | ||

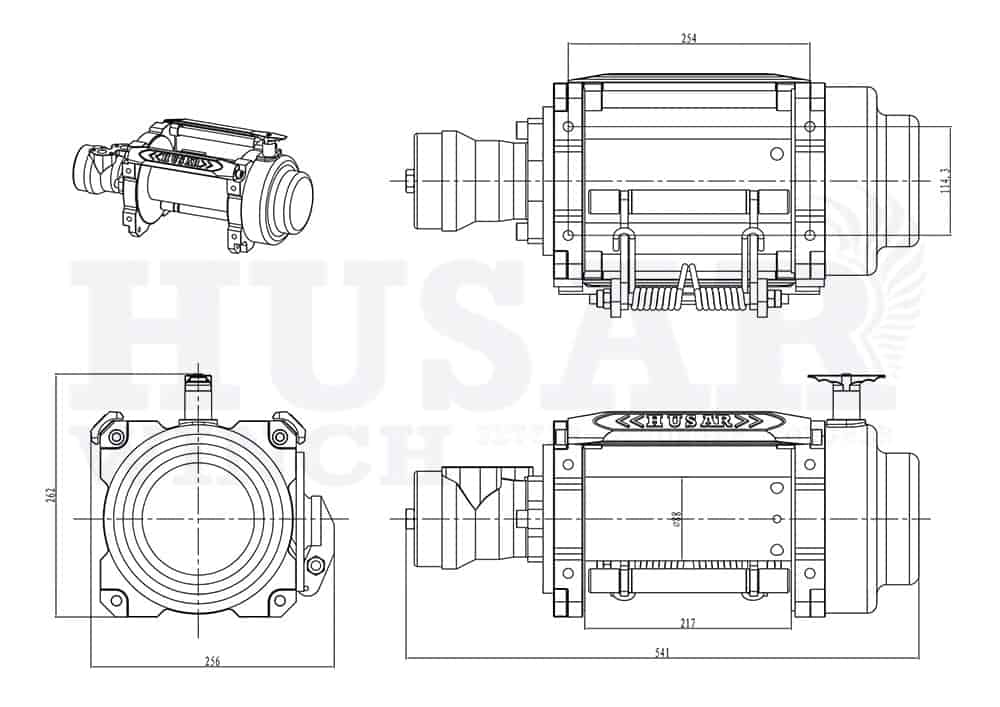

| Mounting bolt pattern | 254mm×114.3mm | ||
| Dimensions | (L x W x H) 541mm ×390mm ×320mm | ||
| Line speed and motor current (first layer) | ||||||
| Line pull | Lbs | 0 | 10000 | 12000 | 15000 | 18000 |
| Kgs | 0 | 4536 | 5443 | 6843 | 8165 | |
| Line speed | m/min | 0,5 | 2,0 | 3,0 | 5,5 | 6,0 |
| Pressure | PSI | 290,1 | 1261,8 | 1450,3 | 1775,2 | 1885,4 |
| Oil flow | l/min | 5 | 10 | 20 | 30 | 60 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| Rated line pull per layer | Lbs | 18000 | 12120 | 10168 | 8757 | |
| Kgs | 8165 | 5498 | 4612 | 3972 | ||
| Cable capacity per layer | M | 5,5 | 12,4 | 20,1 | 26,5 | |
