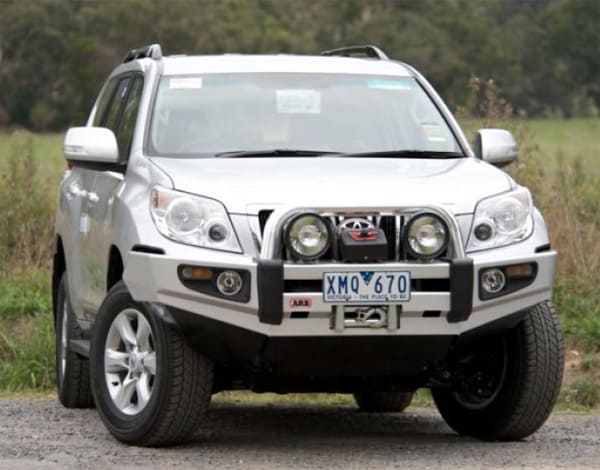

Toyota Landcruiser Prado 150 Sahara Bumpers

Application: Toyota Prado 150 Series including SX, GX, GXL, ZR, VX & Kakadu models
Part No. : 3921450 Models Without Front Parking Sensors (SX, GX, GXL)
Colour: Millennium Grey

With the addition of forward facing camera, parking sensors and HID head lights to various models in the Prado 150 range, our engineers were faced with a number of new challenges. Some of these new features such as the parking sensors were able to be successfully incorporated into the design. However features including the forward facing camera may have limited functionality with the fitment of additional accessories such as driving lights and winches. For more information and ARB’s recommendations, please refer carefully to the application chart on page 3 and be sure that any potential customers are aware of the considerations required in choosing a suitable bumper.

FEATURES:
– Clean design with protection to lower front vehicle components by specific wing panels and stone tray

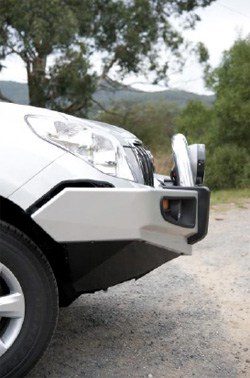

– Excellent approach angle of 31 Degrees (when fitted with OME Integrated Suspension System)
– Designed to suit WARN M8000, 9000XD, 9500XDC & 9.5 XP winches
– Cover panel supplied for non-winch applications

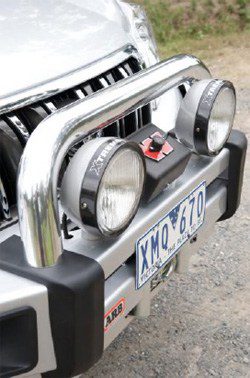

– Accepts 108, 808, 800 & 900 Series IPF driving lights
– Mounting system fully redesigned and from ground up and tested to suit new vehicle crash curve. Mount brackets are independent and adjustable. Mounting position of bumper is higher than previous providing maximum approach angle benefit. Bracing system is provided to the winch mount bracket for full bar stability when winching.
– CB aerial brackets on outer wing top panels
– 2 x HiLift jacking points in centre pan
– Provision for optional ARB Fog Light kit P/No 6821201
– Access provided to O.E. tow points
– Front parking sensor holes are cut in the front face 3921460 bumper. These sensor holes are strategically shaped and positioned along with internal access holes to provide routing across the front inside of the bumper to suit the OE sensor loom.
– Headlamp washer system is functional with both the 3921450 and 3921460 bumpers.

NOTE: Please read application chart for disclaimers and ARB suggestions for applicable bars to suit vehicle range
